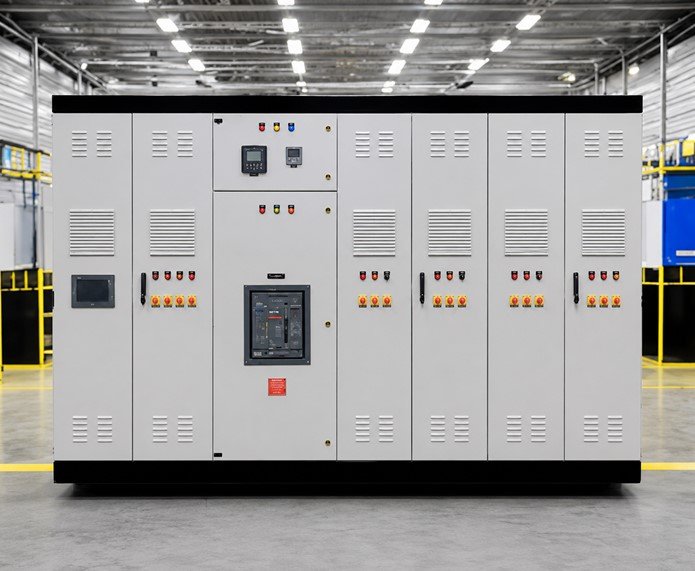

Real-Time Power Factor Correction (RTPFC) Panel Solutions for Dynamic Reactive Power Compensation
CNC machines, welding tools, VFDs, compressors, cranes, rolling mills, robots, and automated production lines are examples of highly dynamic electrical loads found in modern industrial facilities. Standard APFC panels are unable to maintain an ideal power factor due to these quickly fluctuating loads, which causes power factor penalties, voltage swings, higher losses, and decreased equipment efficiency. Greenventum Powertech Solutions offers advanced Real-Time Power Factor Correction (RTPFC) Panel Solutions that use high-speed thyristor switching technology to enable immediate reactive power adjustment. Our RTPFC Panels improve voltage stability, save electricity costs, automatically maintain near-unity power factor, and increase the dependability of your electrical distribution system. For RTPFC Panels used in commercial and industrial settings, Greenventum provides full design, production, supply, installation, testing, commissioning, retrofitting, and yearly maintenance.
Some advanced electrical panel called a Real-Time Power Factor Correction (RTPFC) Panel employs solid-state thyristor (SCR) switching to connect or disconnect capacitor banks in milliseconds in reaction to shifting load requirements. RTPFC panels offer zero-cross switching, which reduces switching peaks and provides quick and precise reactive power adjustment, in contrast to traditional APFC panels that rely on contactor switching.
An RTPFC Panel helps organizations:
- Maintain near-unity power factor
- Reduce reactive power demand
- Eliminate utility power factor penalties
- Improve voltage stability
- Reduce electrical losses
- Increase transformer capacity utilization
- Improve equipment life
- Enhance overall power quality
The RTPFC Panel continuously monitors:
At the zero-voltage crossing point, a processor or DSP-based controller quickly switches capacitor stages via thyristor modules after analyzing load fluctuations.
The system performs:
- Real-time load monitoring
- Instant capacitor switching
- Dynamic reactive power compensation
- Near-unity power factor correction
- Voltage stabilization
- Reduced switching transients
Real-Time Power Factor Correction
Instantaneous correction for dynamic loads.
Millisecond Switching Speed
Response time under 20 ms.
Zero-Cross Thyristor Switching
Minimizes switching transients.
Intelligent DSP-Based Controller
Advanced control algorithm.
Automatic Reactive Power Compensation
Continuous var management.
Harmonic-Compatible Design
Suitable for non-linear loads.
Detuned Reactor Option
Protection against resonance.
Multi-Step Capacitor Banks
Fine granularity compensation.
LCD/HMI Display
User-friendly monitoring.
SCADA & BMS Integration
Seamless automation connectivity.
Remote Monitoring
Monitor from any location.
Modular Expandable Design
Scalable for future needs.
Compact Panel Construction
Space-efficient footprint.
Low Maintenance
Long service life.
High Operational Reliability
Consistent performance.
Thyristor-Based RTPFC Panel
Ideal for highly fluctuating industrial loads requiring ultra-fast reactive power compensation.
Hybrid RTPFC Panel
Combines thyristor-based and contactor-based capacitor stages for cost-effective performance in mixed-load applications.
Detuned RTPFC Panel
Equipped with detuned reactors to prevent harmonic resonance in facilities with VFDs, UPS systems, and other non-linear loads.
RTPFC Panel with Harmonic Filtering
Integrated with Active Harmonic Filters or passive filters to provide both harmonic mitigation and reactive power compensation.
Manufacturing Industries
Maintain stable power factor for rapidly changing production loads.
Steel & Rolling Mills
Compensate fluctuating reactive power demand during heavy-duty operations.
Cement Plants
Improve electrical efficiency for crushers, kilns, and conveyor systems.
Automotive Industries
Support robotic assembly lines and automated manufacturing equipment.
Textile Industries
Ensure stable power quality for spinning, weaving, and processing machinery.
Hospitals
Provide reliable power quality for medical equipment and critical infrastructure.
Data Centres
Maintain stable electrical performance for UPS systems and IT infrastructure.
Commercial Buildings
Improve efficiency of HVAC systems, elevators, and large electrical loads.
Airports & Metro Rail
Support mission-critical electrical systems with dynamic power factor correction.
A facility operating with fluctuating loads may experience:
These problems are reduced and electrical system performance is improved by installing an RTPFC Panel.
Millisecond Response Time
Provides reactive power compensation within milliseconds for rapidly changing loads.
Near-Unity Power Factor
Maintains a power factor close to 1.0, reducing utility penalties.
Improved Voltage Stability
Minimizes voltage fluctuations and improves equipment performance.
Lower Electricity Costs
Reduces reactive power charges and improves energy efficiency.
Increased Equipment Life
Protects transformers, motors, cables, and switchgear from electrical stress.
Reduced Maintenance Costs
Zero-cross switching minimizes wear on capacitors and switching devices.
Improved Electrical Reliability
Enhances the stability and efficiency of the electrical distribution network.
Future-Ready Design
Modular architecture allows easy expansion as electrical loads grow.
Greenventum provides complete turnkey RTPFC solutions, including:
Before providing the best RTPFC Panel layout, our professionals analyze your electrical infrastructure.
Our RTPFC Panel Solutions are suitable for:
Experienced Power Quality Engineers
Our engineering team specializes in power factor correction, harmonic mitigation, reactive power management, and electrical system optimization.
Customized RTPFC Panel Design
Every RTPFC Panel is engineered according to your load profile, power factor requirements, harmonic conditions, and future expansion plans.
Premium Quality Components
We use intelligent controllers, high-performance thyristor modules, heavy-duty capacitor banks, and reliable protection devices to ensure long service life.
Complete Project Execution
Our services include design, manufacturing, installation, testing, commissioning, operator training, and long-term maintenance support.
Detailed Engineering Documentation
Every project includes Electrical Load Study, Power Factor Analysis Report, Harmonic Analysis Report, RTPFC Sizing Calculations, Panel Drawings, Factory Test Reports, Commissioning Report, and Operation & Maintenance Manual.
| Feature | RTPFC Panel | APFC Panel |
|---|---|---|
| Switching Technology | Thyristor (SCR) | Contactor or Thyristor |
| Response Time | Less than 20 milliseconds | 2–10 seconds |
| Best Application | Dynamic & fluctuating loads | Stable & moderate loads |
| Switching Method | Zero-cross switching | Mechanical switching |
| Voltage Transients | Negligible | Moderate |
| Maintenance | Low | Moderate |
| Power Factor Accuracy | Excellent | Very Good |
